Description
Have a lot of cell holders and want to mount them nicely to a panel?
This is a sheet metal part with the appropriate mounting holes to attach 8 cell holders to the front of a standard 19-inch server rack.
Dimensions:
- 2x M6 clearance slots on each side fit in the center bolt hole of the top and bottom rack units this occupies, 465.12mm 18.312inch apart.
- Comes in a few different heights to accommodate cell holders of various lengths, noted by the number of rack units that it occupies (1U = 1.75inch = 44.45mm).
- Dimensional Drawing for 4U version available here.

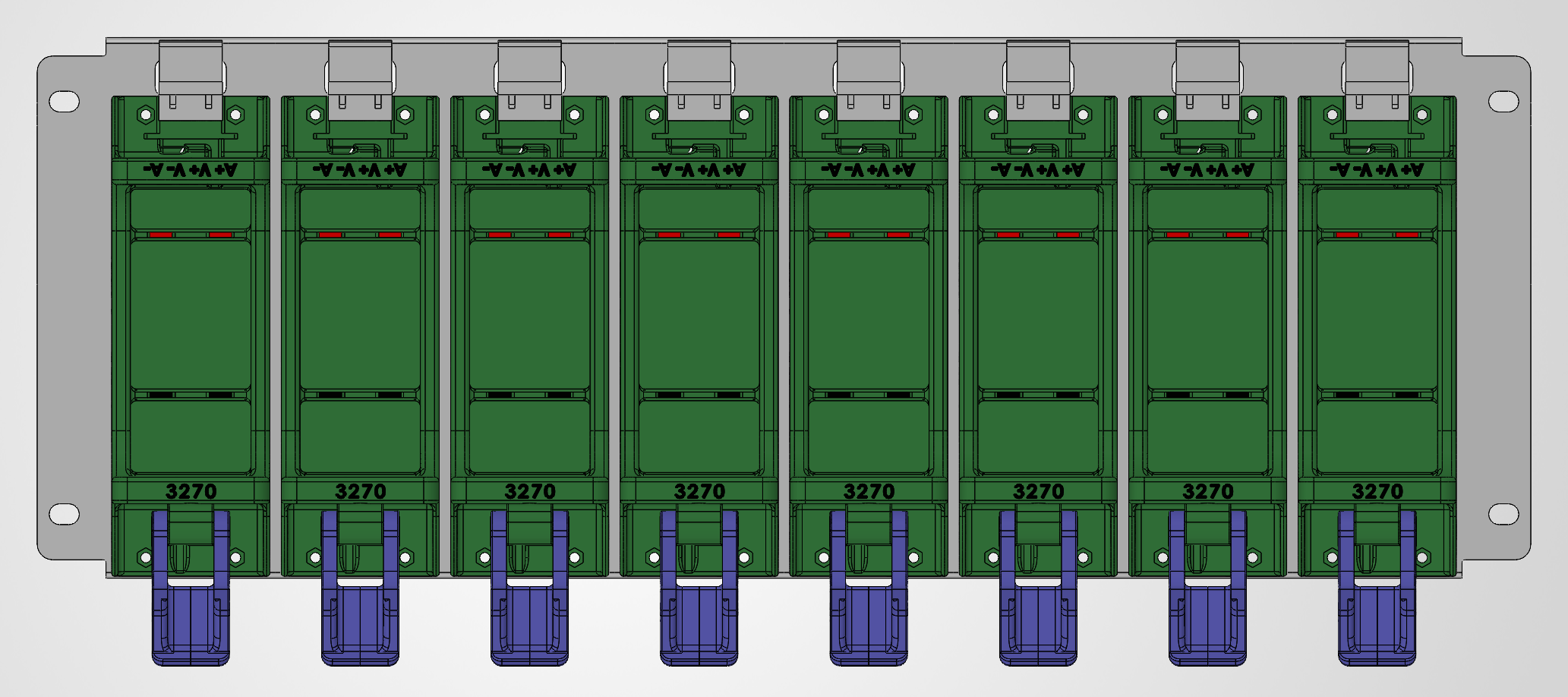

- Note that with the Push Release, the cell holders will overhang an additional 1U. See product images.
Material:
Raw metal finish (G90 Galvanized Steel, 0.035inch). Other finish options or materials are available for additional cost – please contact us for details.

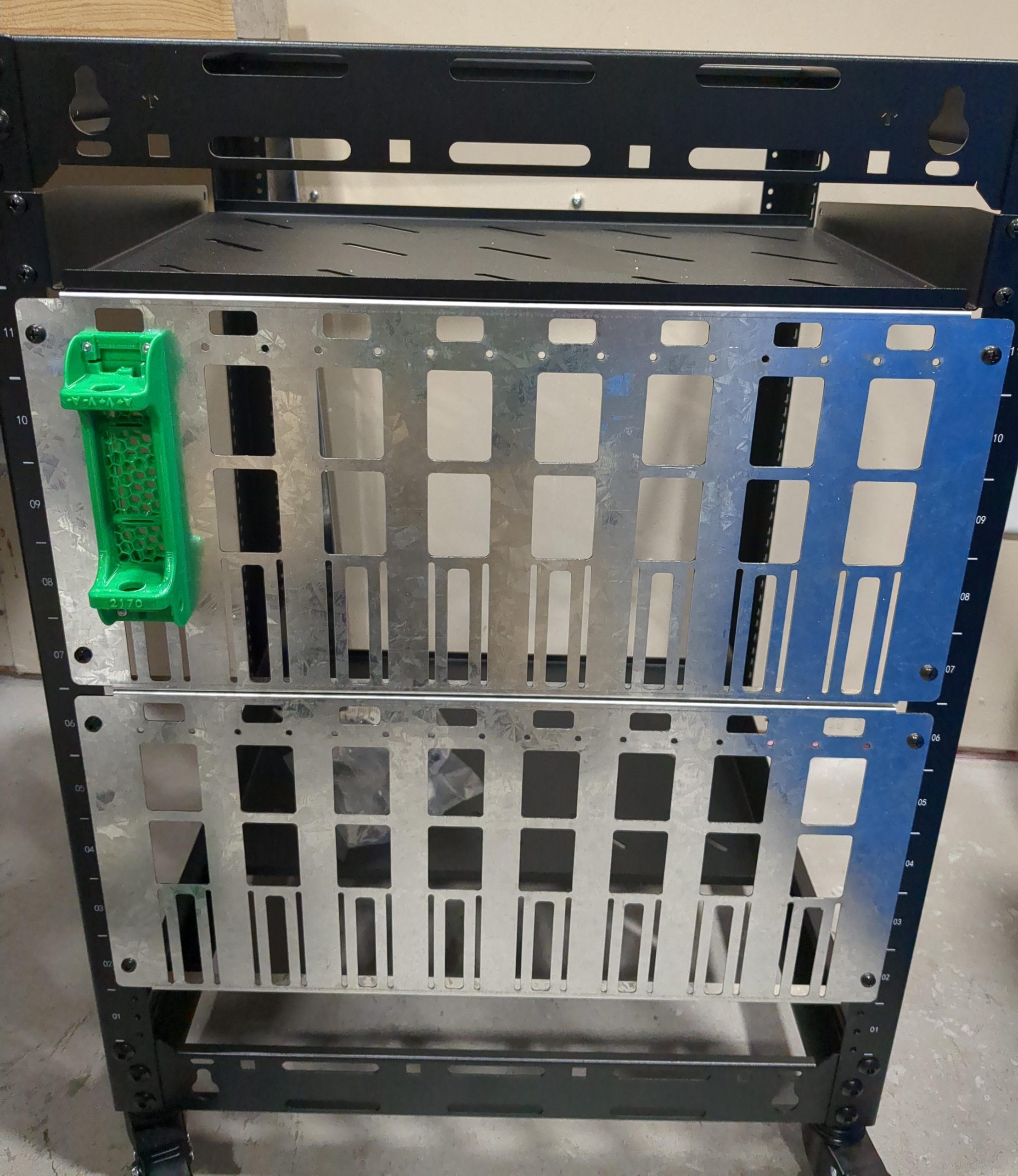

NOTE – the picture shows 2 rack mount panels, a 15U rack, and a cell holder 3D print. Only 1 rack mount panel is included.
Backordered items may take up to 3 weeks to ship.
This product is made in Canada.
